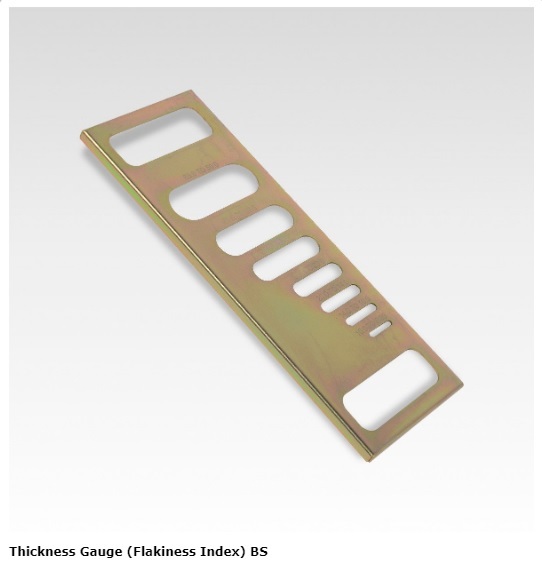

Thickness Gauge (Flakiness Index BS) (UTA-0450)

General and Geometric Properties

CodeUTA-0450
StandardsBS 812-105.1
  • Thickness Gauge is used to determine if the aggregate particles are to be considered as flaky, i.e. their thickness is less than 0.6 of their nominal size.
  • The aggregate to be classified is separated into seven sieve fractions from 6.3 to 63 mm, and each fraction is examined separately.
  • Slot sizes are 4.9 x 30 mm, 7.2 x 40 mm, 10.2 x 50 mm, 14.4 x 60 mm, 19.7 x 80 mm, 26.3 x 90 mm and 33.9 x 100 mm.
Dimensions310x130x10 mm
Weight (approx.)0,4 kg

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
