Material Testing Laboratory Equipment

TFOT – Bitumen Oven for Thin Film Oven Test (UTB-0345)

SKU: UTB-0345 Category:

Bitumen and Bituminous Binders

CodeUTB-0345
StandardsEN 12607-2,13303; ASTM D6, D1754; AASHTO T47, T179; BS 2000

Product Code:

UTB–0345Bitumen Oven for Thin Film Oven Test (TFOT method) and Loss on Heat Test

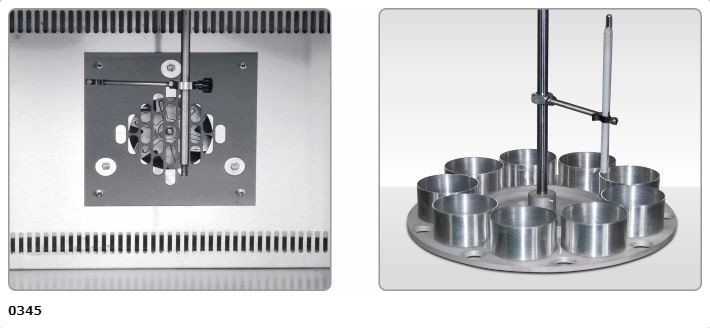

UTAS–0346Rotating Shelf Ø 250 mm for Loss on Heating Test
UTAS–0348Rotating Shelf for Thin Film Oven Test
UTGH–1399Sample Cup, Aluminium, Ø 140×9.5 mm for Thin Film Oven Test (TFOT) 4 pcs.
Models for 220-240 V 50 Hz, 1ph.UTB-0345-T
Models for 110-120V 60 Hz, 1 ph.UTB-0345-N
Models for 220-240V 60 Hz, 1 ph.UTB-0345-N

 Description:

  • UTB-0345Bitumen Oven is used for determining the loss in mass, of oil and asphaltic / bituminous compounds when heated with the loss on heating test method or the effect of heat and air on semisolid asphaltic / bituminous materials with the thin film oven test (TFOT) method.
  • The internal chamber of the UTB-0345Thin Film Bitumen Oven is made of stainless steel and the door has a panel window.
  • Oven has a working temperature ambient to 200 °C, digital PID controller and circulation fan.
  • Supplied complete with ASTM 13C thermometer (155 to 170°C)
  • Rotating shelfs (UTB-0346 or/and UTB-0348) and sample cups (UTGH-1425 or/and UTGH-1399) should be ordered separately according to the test type.
Dimensions910x800x550 mm
Weight (approx.)60 kg

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
