System for data acquisition (TM 150.20)

System for data acquisition (TM 150.20)

measurement and illustration of frequency and phase response

CodeTM150.20

Description:

  • This system for data acquisition is an addition to the TM 150vibration trainer and makes it possible to analyse vibration signals on a PC.
  • Frequency and phase response curves can be easily generated, saved and output using this system.
  • The system also offers all the essential functions of a digital storage oscilloscope and can calculate the frequency spectra of the signals.

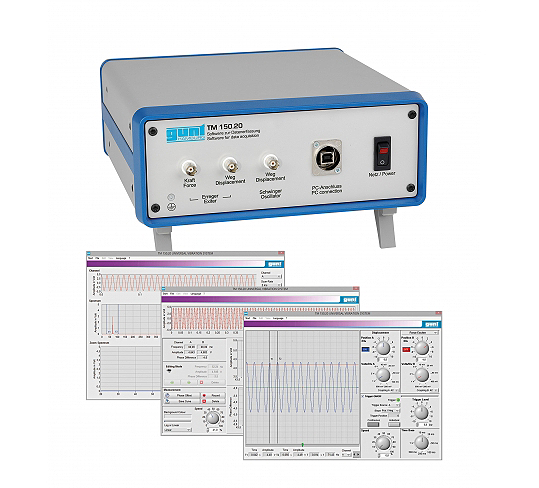

  • In addition to the software, a displacement sensor and a reference sensor, the system also includes an interface box.
  • This supplies up to three sensors, prepares their measuring signals for the PC and offers them to three analogue outputs for display.

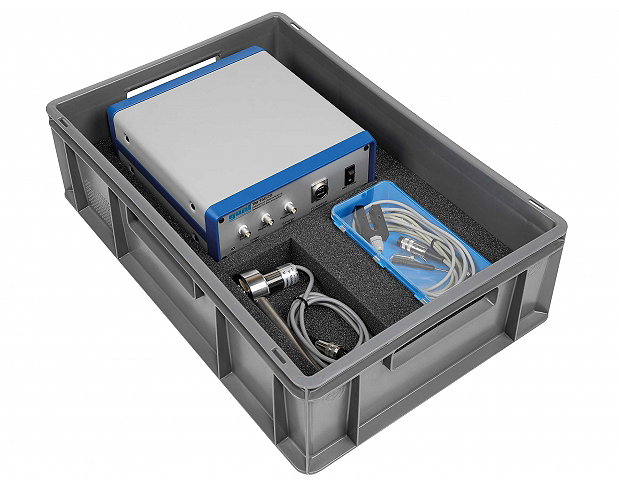

  • All components of the system are ready at hand and securely housed in a storage system.

Technical Details:

Specification:

  • data analysis for TM 150
  • measurement, recording and analysis of frequency response and transfer function
  • functions as a digital storage oscilloscope
  • interface box with 3 sensor inputs and 3 analogue outputs
  • 1 inductive displacement sensor (amplitude), 1 reference sensor (exciter force)
  • GUNT software for data acquisition via USB under Windows 8.1, 10

Technical Data:

  • Sensor input channels: 3
  • Inputs in oscilloscope mode: 2
  • Time basis: 10…750ms/DIV
  • Record length: 2000 points
  • Displacement sensors
    • measuring range: 5…10mm
    • frequency range: 0…50Hz
  • 230V, 50Hz, 1 phase
  • 230V, 60Hz, 1 phase
  • 120V, 60Hz, 1 phase; UL/CSA optional

Dimensions & Weight:

  • L x W x H: 265x260x110mm (interface box)
  • Weight: approx. 7kg
  • L x W x H: 600x400x170mm (storage system)

Required for Operation:

  • PC with Windows

Learning Objections/Experiments:

  • supported experiments with TM 150:
    • natural vibration of a bar-type oscillator
    • damped vibration of a bar-type oscillator
    • forced vibration of a bar-type oscillator (damped and undamped resonance)
    • frequency and period time measurements
    • Kater’s pendulum

Scope of Delivery:

  • 1 interface box
  • 1 displacement sensor
  • 1 reference sensor
  • 1 GUNTsoftware + USB cable
  • 1 set of cables
  • 1 storage system
  • 1 manual

Features:

  • measurement and illustration of frequency and phase response
  • digital storage oscilloscope

Accessories:

·         Required: TM 150 Vibration trainer



Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
