mode of operation of single-stage and multistage gears

CodeTM110.03

Description:

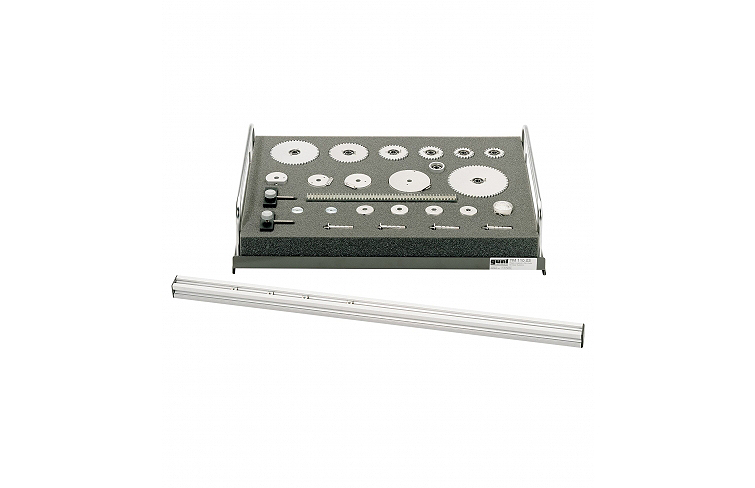

  • Supplementary set TM 110.03extends the scope of experiments which can be performed with TM 110 with the issues single-stage and multistage gear and conversion of rotation into linear motion.
  • A rack is used to demonstrate the conversion of rotation into linear motion and vice versa.
  • The base element is an aluminium rail which can be mounted on the panel of TM 110using clamping elements.
  • All parts are clearly laid out and well protected on a storage system.
  • The storage systems are stackable, providing for space-saving storage.

Learning Objective/Experiments:

  • transmission ratio of speed and moment on a single-stage gear
  • influence of intermediate wheels on the direction of rotation
  • transmission ratio on a two-stage gear
  • conversion of rotation into linear motion and vice versa

Scope of delivery:

  • 1 supplementary set
  • 1 storage system with foam inlay
  • 1 set of instructional material

Accessories:

Required: TM 110 Fundamentals of statics
