960406 Real-time PCR is a 96 well quantitative fluorescence Real-time PCR System, equipped with a 10.1-inch high-definition colour touch screen and built-in analysis software for intuitive operation and analysis.
Features:
- Advanced optical system including full-spectrum high-power LED and high-sensitive PMT top scanning achieves higher sensitivityyou need in researches and experiments.
- High-precision temperature controlover the block with a resolution of 0.1 ℃ offers reliable and consistent qPCR assay data.
- Gradient temperature range is 30-100℃ and the temperature difference between adjacent blocks can be high up to 40℃ for assay optimization.
- Sample tray automatically moves in/out, enabling integration with automated workstations/plate handlers for unmanned detection.
- 6 fluorescence channels without cross talk and 96-well high-throughput process at a single run meet a variety of qPCR assay demands.

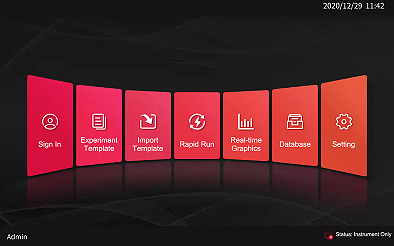

- The 10.1-inch large touch screen facilitates flexible programming and efficient running of PCR protocols.
- The intuitive built-in software and PC software for improved user’s experience allow you to run and analyse qPCR data from personal computer
- Two temperature control modes enable you to control either block or tube temperatures.
- Combining the innovative thermal cycling system, accurate photoelectric detection system and intuitive software, the real-time PCR delivers precise and reproducible experimental results.
- The device also has two temperature control modes settings which enables you to control either block or tube temperatures.
Multiple Applications:
- The Real-Time Fluorescent Quantitative PCR System uses fluorescence real-time detection method to analyse the amplification of PCR template.
- It is suitable for human genome engineering, forensic medicine, oncology, population biology, palaeontology, zoology, botany and other research fields.
- This PCR detection system can be an in vitro diagnostic medical device, which is suitable for polymerase chain reaction fluorescence quantitative detection in the field of clinical diagnosis of viruses, tumors, genetic diseases, etc.
| Model | 96046 |
| Throughput | 96 well (12X8) |
| Applicable consumables | PCR single tube or strip, 96well*0.2ml half skirted/ no skirted plate |
| Dynamic range | 1-1010copies |
| Detection location | Top detection |
| Excitation light wavelength | 400-800nm |
| Detection wavelength | 500-800nm |
| Fluorescence channels | 6 channels |
| Fluorochrome / dye | Channel 1: FAM/SYBR Green I Channel 2: JOE/HEX/TETA/IC
Channel 3: NED/TAMRA/Cy3 Channel 4: ROX/Texas Red Channel 5: Cy5 Channel 6: Cy5.5 |
| Excitation light source | full-spectrum LED |
| Detector | PMT |
| Block temperature range | 4-105°C |
| Block temperature accuracy | ≤±0.1℃ |
| Block temperature precision | ≤±0.1℃ |
| Block temperature uniformity | ≤±0.1℃ |
| Max. heating & cooling rate of block | ≥6℃/S |
| Gradient temperature difference | 1-40°C |
| Block temperature control mode | Block mode, Tube mode |
| Sample volume range | 5-100 µL |
| Heated lid temperature range | 30°C-110°C (default 105°C) |
| Fluorescence intensity | CV ≤3% |
| Detection repeatability | Yes |
| Touch screen | 10.1-inch touch screen |
| Scan mode | Full plate scan or specified line scan |
| Software functions | Absolute quantification, Relative quantification,
Melting curve, SNP genotyping, HRM, Quick run, etc. |
| Operation system | PC software (Windows 8 or higher), Built-in software |
| Ports | USB Type-A port x 2, USB Type-B port, RJ45 port |
| Power-off protection function | YES. Data can be restored after power-on |
| Sample tray control mode | Sample tray automatically moves in/out, enabling integration with automated workstations/plate handlers. |
| Dimensions | 320(W)mmx525(L)mmx420(H)mm |
| Net weight | 27 kg |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this website.
