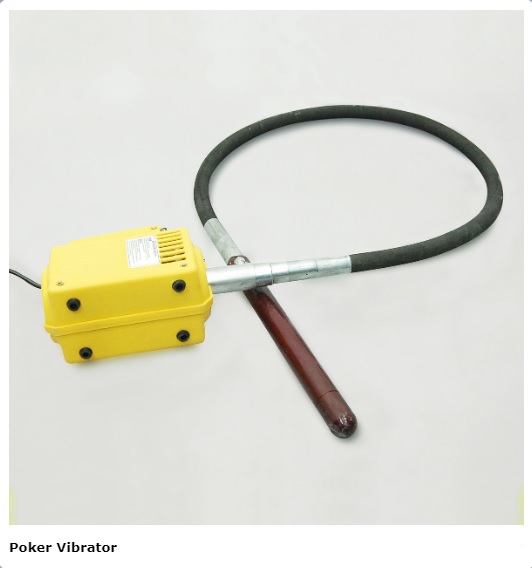

Poker Vibrator (UTC-0928)

Poker Vibrator (UTC-0928)

SKU UTC-0928 Categories ,

Hardened Concrete Testing

Code UTC-0928
Standards EN 12390–2; ASTM C31, C192; AASHTO T23, T126

Product Codes:

UTC-0928 Poker Vibrator Ø 22 mm Hand-Held, 220-240 V 50-60 Hz
UTC-0930 Poker Vibrator Ø 22 mm, 220-240 V 50-60 Hz
UTC-0932 Poker Vibrator Ø 27 mm, 220-240 V 50-60 Hz
UTC-0935 Poker Vibrator Ø 32 mm, 220-240 V 50-60 Hz
UTC-0938 Cordless Concrete Vibrator, 18 V, Ø:25×1200 mm, 12.500 vpm.

Description:

  • The Poker Vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted.
  • Flexible shaft length and tip diameter can be selected from the four available products.
Product Code Type & Shaft Frequency
UTC- 0928 Ø22×350 mm tip-1 m shaft 10.000 vib/min
UTC- 0930 Ø22×350 mm tip-2 m shaft 12.000 vib/min
UTC- 0932 Ø27×370 mm tip-2 m shaft 12.000 vib/min
UTC- 0935 Ø32×400 mm tip-2 m shaft 12.000 vib/min
UTC-0938 Ø25-1,2 m shaft 12.500 vib/min
Product Code Dimensions Weight (approx.)
UTC- 0928 100x750x350 mm 8 kg
UTC- 0930 160x850x360 mm 14 kg
UTC- 0932 160x850x360 mm 14 kg
UTC- 0935 160x850x360 mm 14 kg
UTC-0938 250x250x1500 mm 3,5 kg

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
