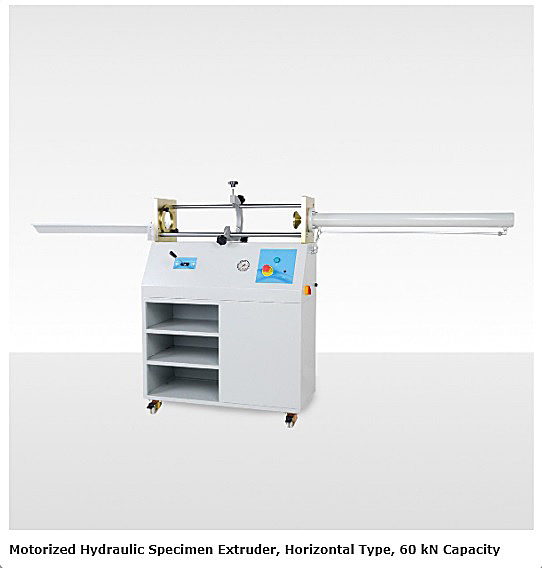

Motorized Hydraulic Specimen Extruder, Horizontal Type, 60 kN Capacity (UTGE-0084)

SKU: UTGE-0084 Categories: ,

Laboratory Testing

CodeUTGE-0084
StandardsEN13286-2,13286-47, 12697-30; AASHTO T134, T180, T193, T245; ASTM D698, D1557, D1883, D1559; BS1377-4, 1924-2, 598-107
Models for 220-240V 50-60 Hz, 1phUTGE-0084
Models for 110-120V 60 Hz, 1phUTGE-0084-N
Capacity60 kN
Ram Travel900 mm
Dimensions2800x500x1250 mm (working position)

2050x500x1250 (shipping)

Weight (approx.)195 kg
Power750 W
  • The UTGE-0084 Motorized Hydraulic Extruder, Horizontal Type, is designed for extruding specimens from 50mm (2”) to 125mm (5”) (outer dia.) shelby sample tubes and moulds such as proctor, CBR and marshall moulds.
  • Also useful for sampling and removing uniaxial and triaxial test specimens to/from the cutters inner dia. from 38mm to 100mm.
  • The Extruder has 60 kN capacity and 900 mm ram travel.
  • The hydraulic piston can be stopped at any position during the extraction.
  • To remove the sample from the shelby tubes, adapter sets of different sizes in the table below should be ordered separately.

The Hand Operated Hydraulic Extruder is supplied complete with:

  • Adapter sets for Ø100 mm (4”) and Ø150 mm (6”) inner dia. moulds
  • Second plate flanges for Ø38mm, Ø50mm and Ø70 mm inner dia. test tubes
For UTS-0084
UTGE-0110Adaptor Set for 2″ (50,8mm) Outer Diameter Shelby Tubes.Includes a ring with 48,5mm ID. and an extruder head with Ø43,5mm.
UTGE-0112Adaptor Set for 2 ½” (63,5 mm) Outer Diameter Shelby Tubes.Includes a ring with 61mm ID. and an extruder head with Ø56mm.
UTGE-0114Adaptor Set for 3″ (75 mm) Outer Diameter Shelby Tubes.Includes a ring with 72mm ID. and an extruder head with Ø67mm.
UTGE-0116Adaptor Set for 3 1/4″ (83 mm) Outer Diameter Shelby Tubes.Includes a ring with 79,5mm ID. and an extruder head with Ø74,5mm.
UTGE-0118Adaptor Set for 3 1/2″ (88,9 mm) Outer Diameter Shelby Tubes.Includes a ring with 85mm ID. and an extruder head with Ø80mm.
UTGE-0120Adaptor Set for 100 mm Outer Diameter Shelby Tubes.Includes a ring with 96mm ID. and an extruder head with Ø91mm.
UTGE-0122Adaptor Set for Ø4″ (101,6 mm) Outer Diameter Shelby Tubes.Includes a ring with 97,5mm ID. and an extruder head with Ø92,5mm.
UTGE-0124Adaptor Set for 4 1/2″ (114,3 mm) Outer Diameter Shelby Tubes.Includes a ring with 109mm ID. and an extruder head with Ø104mm.
UTGE-0125Adaptor Set for 5″ (125 mm) Outer Diameter Shelby Tubes.Includes a ring with 119mm ID. and an extruder head with Ø114mm.

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
