Mechanical and Physical Properties
| Code | UTA-0620E |
| Standards | EN1097-1, 13450 |
Product Code:

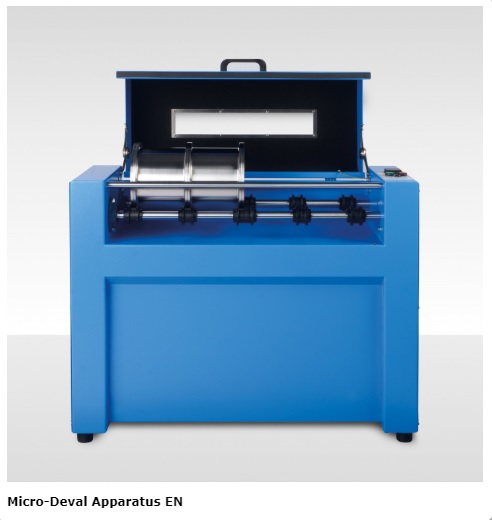

| UTA-0620E | Micro-Deval Apparatus, EN |
| UTA-0621E | Stainless Steel Drum, EN, Ø 200×154 mm ID for UTA-0620E |
| UTA-0622E | Stainless Steel Drum EN, Ø 200×400 mm ID for UTA-0620E |
| UTA-0623E | Micro-Deval Abrasion Charges, Stainless Steel, EN, Ø10 mm 20 kg Pack |
| UTA-0624B | Micro-Deval Abrasion Ball Set, BS, (3 pcs. balls) |
| Models for 220-240V 50 Hz, 1 ph. | UTC-0620E-T |
| Models for 110-120V 60 Hz, 1 ph. | UTC-0620E-N |
| Models for 220-240V 60 Hz, 1 ph. | UTC-0620E-K |
- The Micro Deval Testing Machine is used to determine the resistance to wear of aggregates.
- Automatic digital counter allows machine to stop automatically at the pre-set number of revolutions.
- Stainless steel drums are rotating at a speed of 100 ± 5 r.p.m.
- The machine can accept up to 4 pcs. Ø 200×154 mm drums or 1 pc. Ø 200×400 mm drums.
- Stainless steel abrasion charges, Ø 200×400 mm steel drums and 1,6 mm sieve should be ordered separately.
UTA-0620E Micro-Deval Apparatus is supplied complete with:
- Stainless Steel Drum, EN, Ø 200×154 mm, 4 pcs.
| Dimensions | 1050x450x950 mm |
| Weight (approx.) | 95 kg |
| Power | 550 W |
