Strength Tests
| Code | UTCM-0875E |
| Standards | EN 196-1, 196-3, 413-2, 459-2, 480-1, 1015-2, 12617-4; ASTM C187, C305, AASHTO T129, T131, T162
|
The Manual Mortar Mixers are supplied complete with:
- Bowl, 5 L (approx.)
- Beater
Product Code:
| UTCM-0875E | Manuel Mortar Mixer, EN |
| UTCM-0875A | Manuel Mortar Mixer, ASTM |
| UTCM-0876 | Spare Bowl, 5 L |
| UTCM-0878E | Spare Beater, EN |
| UTCM-0878A | Spare Beater, ASTM |
| Models for 220-240 V 50-60 Hz, 1ph. | UTCM-0875E | UTCM-0875A |
| Models for 110-120 V 60Hz, 1ph. | UTCM-0875E-N | UTCM-0875A-N |
Description:

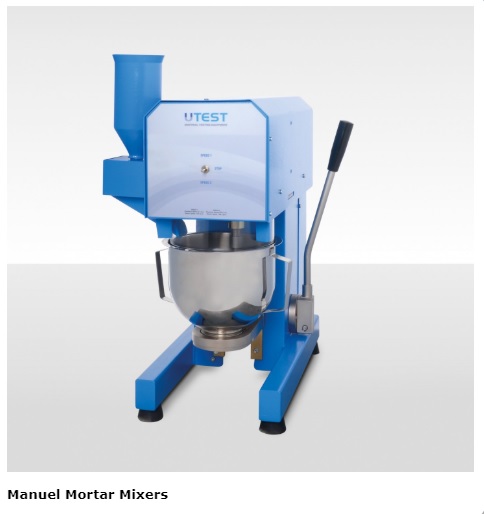

- The UTCM-0875 Manual Mortar Mixer has a 5 litre (approx.) capacity, they have been designed to mix mortars and cement pastes primarily to the requirements of standards.
- The mixing paddles revolve at a rate of 140 rpm. with a planetary motion of 62 rpm. in low speed.
- In high speed, the paddles revolve at the rate of 285 rpm. with a planetary motion of 125 rpm.
- The user can choose the speeds easily by using the switch fitted to the machine.
- There is a sand filling apparatus on the mixers to pour sand easily.
- The bowl and beater are easily fitted and removed from mixer.
| Dimensions | 300 x 555 x 610 mm |
| Weight (approx.) | 54 kg |
| Power | 200 W |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
