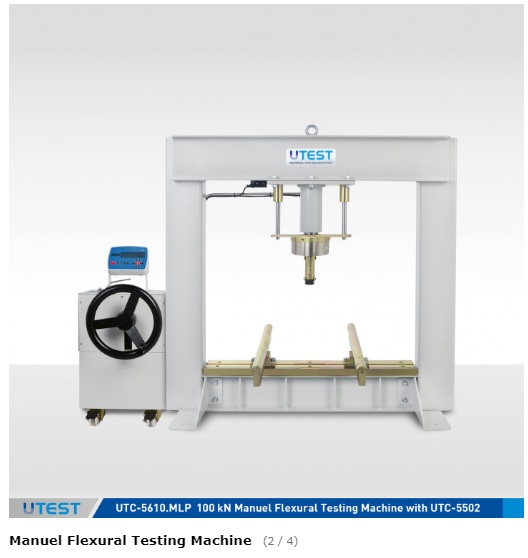

Manuel Flexural Testing Machine (UTC-5610)

Manuel Flexural Testing Machine (UTC-5610)

Compression and Flexural Testing Machines

Code UTC-5610
Standards EN 1338, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496

Product Codes:

UTC-5610 100 kN Manual Flexural Testing Machine

Description:

  • The UTC-5533 100 kN Capacity Manual Flexure Testing Machine is designed to perform reliable flexure tests on standard concrete beams, concrete or natural stone kerbs, concrete paving flags, and natural stone slabs and tensile splitting test of concrete paving blocks.
  • Especially suitable for on-site applications when electric power supply is not available.
  • Being a low-cost alternative, UTC-5533 testing machine combines precision and simplicity with the unique design of the manual power pack.
  • Hand Operated Hydraulic Power Pack enables even an inexperienced operator to perform the flexure tests on-site.
  • The UTEST range of flexural machines have the accuracy of Class 1 starting from 2% of the full capacity.
  • UTC-5533 flexure testing machine consists of a heavy-duty welded frame, Manuel hydraulic power pack and data acquisition system LPI.
  • Flexural test assemblies should be ordered separately.
Capacity 100 kN
Class 1 range 4-200 kN
Resolution 1/ 65.000
Ram Travel 100 mm
Max. Vertical Clearance 425 mm (without accessories)
Max. Horizontal Clearance 650 mm
Max. Clearance Between Lower Rollers 900 mm
Frame UTC-5600
Power Pack UTC-4810
Overall

Dimensions

Frame 1000x950x1130 mm
Power Pack 300x250x500 mm
Weight

(approx.)

Frame 225 kg
Power Pack 50 kg

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
