Laboratory Type Crusher and Grinder (UTA-0360-C)

Laboratory Type Crusher and Grinder (UTA-0360-C)

General and Geometric Properties

Code UTA-0360-C
Standards EN 932-2; ASTM C702; BS 812:1, 1377:1, 1924:1

Product Codes:

UTA-0360-C Laboratory Type Jaw Crusher, 380 V 50 Hz, 3ph

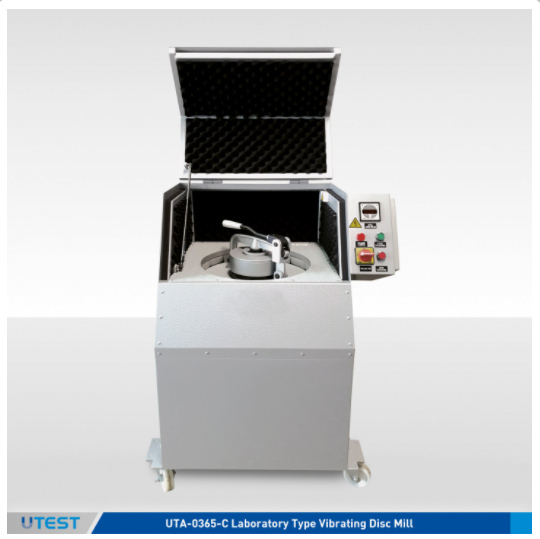

UTA-0365-C Laboratory Type Vibrating Disc Mill, 380 V 50 Hz, 3ph


  • UTA-0360 is used for crushing, UTA-0365 is used for grinding cement clinker, ceramics, basalt, chamotte, construction materials, alloys, coal, coke, feldspar, glass and various materials in the laboratory when smaller sample sizes are required for testing.
  • Three models are available (see Technical Specifications) depending on different feed sizes, output grain sizes and capacity requirements.
  UTA-0360-C UTA-0365-C
Feed Size 100 mm < 15 mm
Output Grain Size < 500 μm 38 μm
Capacity 150 kg/h (*)
Dimensions 482x1044x1015 mm 650x730x1150 mm
Weight (approx.) 250 kg 330 kg
Power 4 HP 1,5 HP

(*) Digital setting of grinding time from 0 up to 999 h or 999 min. or 999 seconds

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this website.
