Compression Testing Frames
| Code | UTC-4713G |
Product Code:
| UTC-4713G | 1500 kN Capacity General Purpose Compression Testing Frame with ø216mm Loading Platens for Cubes and Cylinders |
| UTC-4723G | 2000 kN Capacity General Purpose Compression Testing Frame with Ø216mm Loading Platens for Cubes and Cylinders |

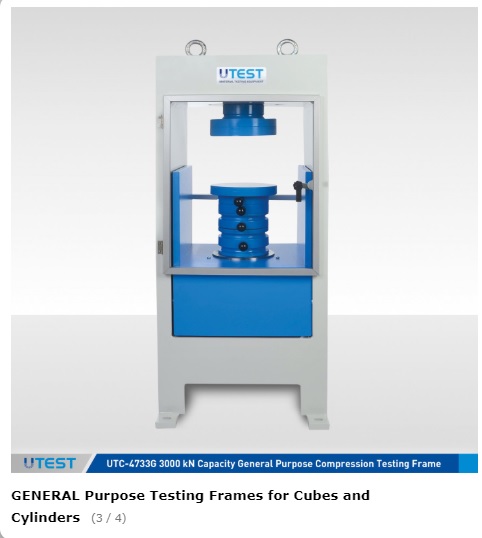

| UTC-4733G | 3000 kN Capacity General Purpose Compression Testing Frame with Ø216mm Loading Platens for Cubes and Cylinders |
| UTC-4727G | 2000 kN Capacity General Purpose Compression Testing Frame with Ø 300 mm Loading Platens for Cubes and Cylinders |
| UTC-4737G | 3000 kN Capacity General Purpose Compression Testing Frame with Ø 300 mm Loading Platens for Cubes and Cylinders |
| UTC-4680 | Pedestal for 600kN, 1000kN and 1500kN. Compression Testing Frames with Welded Walls |
| UTC-4682 | Pedestal for 2000kN and 3000 kN Compression Testing Frames with Welded Walls |
Description:
- General purpose testing frames for cubes and cylinders consist of a rigid welded steel walls, a loading cylinder assembly and Ø 216 mm or Ø 300 mm a lower and an upper (spherically-seated) loading platens by taking into account user requests for general purposes.
- The frames have a 370mm vertical clearance that make possible to perform compression test of cylinders with capping retainers and neoprene pads.
- The General-Purpose compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.
- Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right-hand side of the load frames for easier accessibility, increased productivity and for safer operations.
- All frames also have front and rear protective doors and limit switch for piston stroke for safety,
- UTC-4682 Pedestal that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.
- See the below tables for supplied items with the frames.
|
GENERAL PURPOSE COMPRESSION TESTING FRAMES WITH Ø216 mm LOADING PLATENS FOR CUBES AND CYLINDERS |
|||
| Models | UTC-4713G | UTC-4723G | UTC-4733G |
| Product Photo |  |
 |
 |
| Capacity | 1500 kN | 2000 kN | 3000 kN |
| Frame Type | Welded Steel | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | Ø 216 mm (8,5”) | Ø 216 mm (8,5”) | Ø 216 mm (8,5”) |
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | Ø 216 mm (8,5”) | Ø 216 mm (8,5”) | Ø 216 mm (8,5”) |
| Surface Hardness of Bearing Blocks | 55 HRC | 55 HRC | 55 HRC |
| Flatness Tolerance | 0,05 mm | 0,05 mm | 0,05 mm |
| Piston Diameter | 230 mm | 250 mm | 300 mm |
| Piston Stroke | 50 mm | 50 mm | 50 mm |
| Maximum Vertical Clearance Between Bearing Blocks (E) | 340 mm (13,4″) | 340 mm (13,4″) | 340 mm (13,4″) |
| Horizontal Clearance (B) | 320 mm | 360 mm | 415 mm |
| For Cylinder Specimens Sizes (up to) | Ø160×320 mm | Ø160×320 mm | Ø160×320 mm |
| For Cubes Specimens Sizes (up to) | 150 mm (**) | 200 mm (**) | 200 mm (**) |
| Dimensions (wxlxh) (Axd*xF) | 380x451x1104 mm | 420x453x1144 mm | 475x497x1204 mm |
| Weight | 540 kg | 630 kg | 850 kg |
| Pedestal (Optional) | UTC-4680 | UTC-4682 | UTC-4682 |
| (d*) depth
(**) Limited by capacity of the frame The frames are supplied complete with: • 100 mm, 50 mm and 2 pcs. 30 mm x Ø165 mm distance pieces • Removable transparent front and rear safety doors |
|||
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
