SEMI-AUTOMATIC Compression Testing Machine

Product Codes:

Description:

• UTC-4714GE.SLP, UTC-4729E.SLP, and UTC-4739E.SLP model Semi-Automatic compression Testing Machine manufactured for compression testing of masonry units/blocks,cubes and cylinders by taking into account user requests for general purposes (see below table).
• These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enables an inexperienced operator to perform the test.
• The Machines consist of a welded frame (see below table) and hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

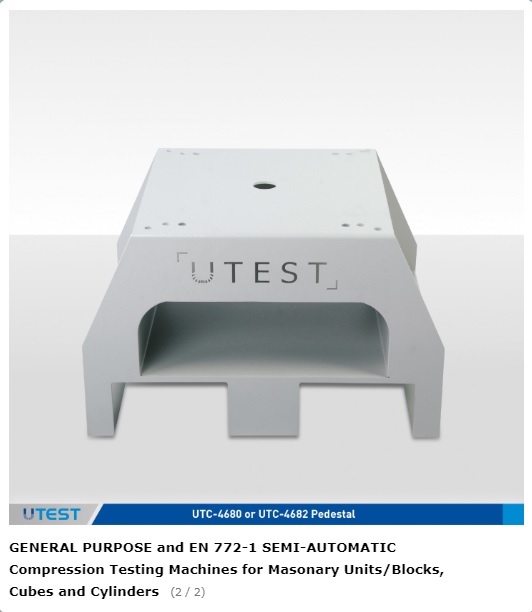

• UTC-4682 Pedestal for the frames of the machines should be ordered separately.

Main Features:

• Load Accuracy Class 1 starting from with the 5% of the machine capacity 1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to another frame, the unit can be control for second test frame)
• Multi-point calibration
• Real time numeric display of load and load pressure
• Supplied with factory calibration certificate for load measurement
• Welded steel walled frame with lower and upper (spherically-seated) loading platens
• Load measurement with a pressure transducer
• Hydraulic pump with dual stage for rapid approach
• RS232 Serial port for PC or thermal or dot matrix printer
• Free of charge Utest software for compression/flexure testing machines (USOFT-4820.SLP) for compression, flexure, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonry units

Safety Features:

• Maximum pressure valves to avoid machine overloading
• Limit switch for piston stroke
• Removable transparent front and rear safety doors
• USOFT-4820.SLP Test Software is improved for semi-automatic concrete compression and flexural testing machines with LPI Battery Operated Digital Readout Unit during the test to collect and record data and to prepare the report containing the results obtained.
• Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time.
• The advanced functions for data base management provide an easy navigation of all saved data.
• Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.

GENERAL PURPOSE AND EN 772-1 SEMI-AUTOMATIC COMPRESSION TESTING MACHINE FOR MASONRY UNITS/BLOCKS, CUBES AND CYLINDERS
Models	UTC-4714GE.SLP	UTC-4729GE.SLP	UTC-4739GE.SLP
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	310 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Masonry Units/Blocks Specimens Sizes (up to)	up to 200×400 mm masonry units/blocks	Ø160×320 mm Ø150×300 mm (Ø6″x12″)	Ø160×320 mm Ø150×300 mm (Ø6″x12″)
For Cylinder Specimens Sizes (up to)	up to Ø160×320 mm cylinders	up to Ø160×320 mm cylinders	up to Ø160×320 mm cylinders
For Cubes Specimens Sizes (up to)	200 mm	200 mm	200 mm
Power	550 W	550 W	550 W
Oil Capacity	20 L	20 L	20 L
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
Dimensions (wxlxh) (Axd*xF)	780x451x1104 mm	720x600x1144 mm	775x600x1204 mm
Weight	690 kg	850 kg	1070 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
(d*) depth       (**) Limited by capacity of the frame  The frames are supplied complete with: • 100 mm, 50 mm, 30mm height x Ø165 mm distance pieces (plus 15 mm x Ø165 mm for UTC-4714GE) • Lifting Device for Lower Loading Platen (UTC-4629) • Removable transparent front and rear safety doors

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
