| Code | LoadTrac II, FlowTrac II |
| Standards |
|
- The LoadTrac II/FlowTrac II flow pump provides a unique and versatile way to run flexible wall permeability tests on a wide variety of materials quickly and accurately.
- By adjusting the gradient or the flow rate across the sample, the system can measure permeabilities of cohesive soils varying from 10-4 cm/sec to 10-9 cm/sec.
- With the appropriate test cells, this one system can determine the permeability of some silty clays within minutes.
- The FlowTrac-II base unit includes a stepper motor, lead screw, pressure chamber and piston, pressure transducer, electronic controls and network communications.
- Versions of the unit are available with flow volumes of 250 cc and 750 cc.
- Flow rates can be set to any value between 0.000006 cc/sec. and 3.0 cc/sec.

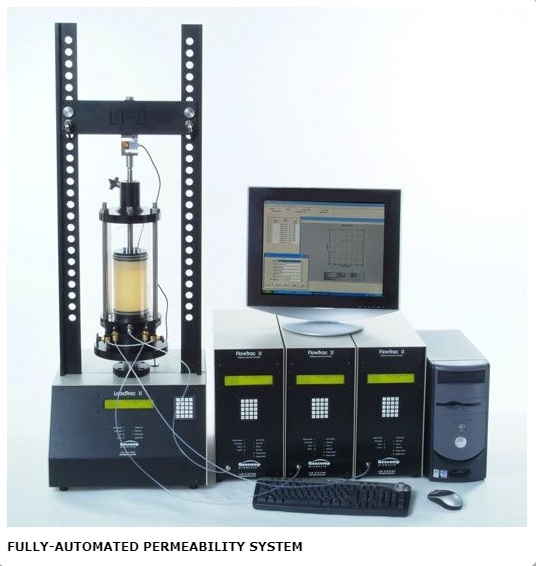

- Flexible wall tests are run in a fully automated mode with three flow pumps and one LoadTrac-II; the FlowTrac-II’s controls cell pressure and flow of cell, bottom sample and top sample.
- This configuration allows great versatility to run fully automated permeability tests with isotropic, anisotropic or Ko consolidation.
- With the network communications module and the appropriate software, the entire test can be automatically controlled, data captured and displayed in real time, and test reports prepared on a PC.
- With GeoNet-LAN option, the test can be monitored and data reported from any PC located on a LAN to which the LoadTrac II/FlowTrac II system is connected.
- ® Control and editing software runs in Windows 2000, XP, Vista 7
Applicable Test Standards:
- ASTM D-5084 – Flexible wall permeability
- ASTM D-2434 – Rigid wall permeability
User Benefits:
- Choose load capacity to fit user needs from 10, 22, 45, and 90kN (2,000, 5,000,10,000, and 20,000 lbs.) models
- Total automation, control, data collection and reporting of test results
- Prepare tables and plots of report quality within minutes of completing a test
- Geo-NET compatibility lets unit be accessed and controlled over a computer network
- Generate columns of data for easy reduction using your own spreadsheet software
- Choose volume capacity to fit user needs from 250, and 750 cc models
- Accurate displacement rate control from 0.00003 to15 mm per minute (0.000001 to 0.6 in. per minute)
- Accurate pressure and volume measurements with integrated sensors
- Standalone through front keypad and LCD menu
Accessories:
- Triaxial/Permeability cells up to 150mm (6.00 in.) diameter, membranes, porous stones and sample preparation accessories upon request.
- Geo-NET PC network card and cable to link LoadTrac II / FlowTrac II to PC
Technical Specifications:
| Motor | Stepper motor with built-in controls |
| Travel | Built-in displacement transducer with 76 mm (3 in.) range and 0.0013 mm (0.00005 in) resolution |
| Displacement | Control from 0.00003 to 15 mm per minute (0.000001 to 0.6 in. per minute) |
| Flow Range | 0.000006 to 3 cc per second |
| Power | 110/220 V, 50/60 Hz, 1 phase |
| Dimensions | Weight (approx.) | |
| LoadTrac II | 464 x 546 x1206 mm
(18 x 21.5 x 47.5 in.) |
55 kg |
| FlowTrac II | 203 x 406 x 470 mm
(8 x 16 x 18.5 in.) |
14 kg |
Models:
| FlowTrac II Models | |
| FTII-250-nn | 250 cc capacity |
| FTII-750-nn | 250 cc capacity |
| LoadTrac II Models | |
| LTII-5,000 | 22 kN (5,000 lbs.) frame capacity |
| LTII-10,000 | 45 kN (10,000 lbs.) frame capacity |
| LTII-20,000 | 90 kN (20,000 lbs.) frame capacity |
| LTII-50,000 | 222 kN (50,000 lbs.) frame capacity |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
