FILTRATION AND VACUUM DESICCATORS (LPW550)

FILTRATION AND VACUUM DESICCATORS (LPW550)

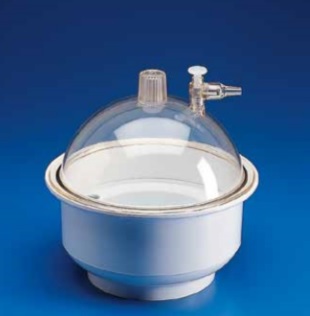

PP / PC, Implosion proof desiccators.

Code LPW550
  • Will take vacuum of -740 mm Hg with loss (Absolut zero: -760 mm/HG) not exceeding 20 mm Hg in 24 hours.
  • The transparent polycarbonate cover seals onto a neoprene ‘0’ ring set into the flange of the PP base.
  • A little grease spread on the ‘0’ ring will assist in establishing initial vacuum.
  • Within the desiccator is a removable pan for holding a drying agent.
  • Vacuum release tap/non return valve assembly is included (Art. 229); specially grooved stopper in this assembly allows air, when required, to be re-admitted very slowly to avoid disturbing the contents.

Usage Instructions:

  1. Remove the cover in PC – insert the samples in the pan
  2. Open the vacuum retention valve (PE needle) connect the tube of the pump to the desiccator spigot in order to create vacuum
  3. Close the vacuum retention valve
Code Vol.it Ø mm Ext. h mm Int. h mm
LPW550 2.15 150 190 135
LPW230 4.35 200 230 175
LPW554 9.20 250 300 225

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
