Compression Testing Frames
| Code | UTC-4609EG |
Product Code:
| UTC-4609EG | 600 kN EN 772-1 and General-Purpose Compression Testing Frame for Masonry Units/ Blocks, Cylinders and Cubes |
| UTC-4709EG | 1100 kN EN 772-1 and General-Purpose Compression Testing Frame for Masonry Units/ Blocks, Cylinders and Cubes |
| UTC-4682 | Pedestal for 2000kN and 3000 kN Compression Testing Frames with Welded Walls |
Description:
- UTC-4609EG and UTC-4609EG compression testing frames for masonry units/ blocks, cylinders and cubes consist of a loading cylinder assembly, lower and upper (spherically-seated) loading platens.
- The compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.
- Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right-hand side of the load frame for easier accessibility, increased productivity and for safer operations.
- All frames have a single acting up stroking ram and also have front and rear protective doors and limit switch for piston stroke for safety.
- The diameter of the pistons is designed to work with their load capacities.
- There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.
- The lower loading platens are provided with lines for centring specimens

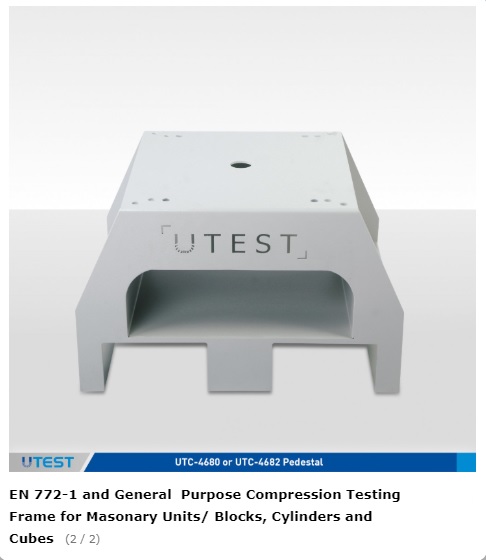

- UTC-4682 Pedestal that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.
- See the below table for supplied items with the frames.
| GENERAL PURPOSE AND EN 772-1 COMPRESSION TESTING FRAMES FOR CUBES, CYLİNDERS AND BLOCKS /MASONRY UNIT | ||
| Models | UTC-4609EG | UTC-4709EG |
| Product Photo |  |  |
| Capacity | 600 kN | 1100 kN |
| Frame Type | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | 310x510x50 mm | 310x510x50 mm |
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | 310x510x50 mm | 310x510x50 mm |
| Surface Hardness of Bearing Blocks | 55 HRC | 55 HRC |
| Flatness Tolerance | 0,05 mm | 0,05 mm |
| Piston Diameter | 230 mm | 230 mm |
| Piston Stroke | 50 mm | 50 mm |
| Maximum Vertical Clearance Between Bearing Blocks (E) | 330 mm | 330 mm |
| Horizontal Clearance (B) | 320 mm | 320 mm |
| Specimens Sizes (**) | up to 300x500mm masonry units/blocks | |
| up to Ø160×320 mm cylinders | ||
| 200 mm cubes | ||
| Dimensions (wxlxh) (Axd*xF) | 380x550x750 mm | 380x550x750 mm |
| Weight | 690 kg | 690 kg |
| Pedestal (Optional) | UTC-4680 | UTC-4680 |
| (d*) depth (**) Limited by capacity of the frame The frames supplied complete with: • 100 mm, 50 mm, 30 mm height x Ø165 mm distance pieces • Lifting Device for Lower Loading Platen (UTC-4629) • Removable transparent front and rear safety doors | ||
