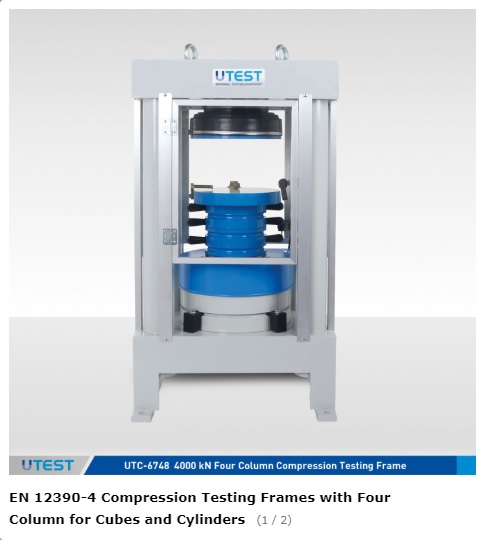

EN 12390-4 Compression Testing Frames with Four Column for Cubes and Cylinders (UTC-6727)

Compression Testing Frames

CodeUTC-6727
StandardsEN 12390-4, EN 12390-3

Product Codes:

UTC-67272000 kN Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-67373000 kN Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-6748 4000 kN Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-67585000 kN Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-4684Pedestal for 2000 kN and 300 kN Four Column Compression Testing Frames
UTC-4686Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames

Description:

  • UTC-6727, UTC-6737, UTC-6748 and UTC-6758 compression testing frames with four columns for cubes and cylinders consist of a loading cylinder assembly, lower and upper (spherically-seated) loading platens. acc. to EN standards.
  • EN four column compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.
  • The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.
  • Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right-hand side of the load frame for easier accessibility, increased productivity and for safer operations.
  • All frames have a single acting up stroking ram and also have front and rear protective doors and limit switch for piston stroke for safety.
  • The diameter of the pistons is designed to work with their load capacities.
  • There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.
  • The lower loading platens are provided with centring lines and fixture for centring specimens.
  • UTC-4684 and UT-4686 Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.
  • See the below table for supplied items with the frames.

EN 12390-4 COMPRESSION TESTING FRAMES WITH FOUR COLUMNS FOR CUBES AND CYLINDERS

ModelsUTC-6727UTC-6737UTC-6748UTC-6758
Product Photo
Capacity2000 Kn3000 kN4000 kN5000 kN
Frame TypeFour ColumnFour ColumnFour ColumnFour Column
Lower Platens Dimensions (D)Ø 300 mmØ 300 mmØ 360 mmØ 360 mm
Upper Platens with Ball Seating Assembly Dimensions (C)Ø 300 mmØ 300 mmØ 360 mmØ 360 mm
Surface Hardness of Loading Platens≥ 53 HRC≥ 53 HRC≥ 53 HRC≥ 53 HRC
Flatness Tolerance0,03 mm0,03 mm0,03 mm0,03 mm
Piston Diameter250 mm310 mm360 mm400 mm
Piston Stroke50 mm50 mm100 mm100 mm
Maximum Vertical Clearance Between Platens (E)350 mm350 mm520 mm520 mm
Horizontal Clearance (B)348/168 mm348/168 mm426/309 mm426/309 mm
Sizes of Specimens for Cubes200 mm (**)200 mm (**)200 mm (**)200 mm (**)
Sizes of Specimens for Cylinders (up to)Ø160×320 mmØ160×320 mmØ250×500 mm (**)Ø250×500 mm (**)
Dimensions (wxlxh) (Axd*xG)590x560x1100 mm680x690x1150 mm772x825x1540 mm772x825x1570 mm
Weight935 kg1435 kg2485 kg2540 kg
Pedestal (Optional)UTC-4684UTC-4684UTC-4686UTC-4686
(d*) depth

(**) Limited by capacity of the frame

The machines for cubes and cylinders are supplied complete with:

• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces (two pcs. each for UTC-6748 and UTC-6758)

• UTC-4622E – Fixture for Centring Specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders (for UTC-6727 and UTC-6737)

• UTC-4624E – Fixture for centring specimens, compatible with Ø360 mm lower loading platen for 150 mm and 250 mm cubes, Ø150 mm and 250 mm cylinders (for UTC-6748 and UTC-6758)

• Removable transparent front and rear safety doors.

Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
