with NOVUS standard ground joint (NS 24/29) junction tube in the lid, stopcock, and flat flange
| Code | LGW247825752 |
- Vacuum-tight, made from DURAN® borosilicate glass 3.3.
- To accelerate drying, a vacuum can be applied via the stopcock.
- Spare parts such as lids, bases, stopcocks and caps can be interchanged (observe DN).
- Typical applications: drying of moist samples and storage of moisture-sensitive substances.
| Cat. No. | DN | ID Flange
(mm) |

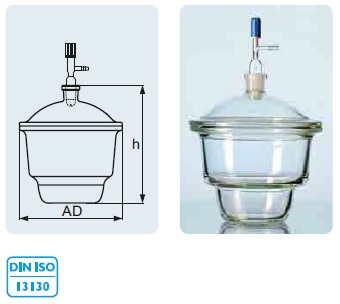

Outer diameter (AD)
Flange (mm) |
h
(mm) |
Tubulature
(NS) |
Volume
approx. (mL) |
Pack
Unit |
| with porcelain plate | |||||||
| 24 782 57 52 | 150 | 172 | 215 ± 2 | 239 | 24/29 | 2 400 | 1 |
| 24 782 61 57 | 200 | 224 | 270 ± 2 | 296 | 24/29 | 5 800 | 1 |
| 24 782 66 54 | 250 | 274 | 320 ± 2 | 344 | 24/29 | 10 500 | 1 |
| 24 782 69 54 | 300 | 332 | 380 ± 2 | 420 | 24/29 | 18 500 | 1 |
| without porcelain plate | |||||||
| 24 782 46 04 | 100 | 119 | 153 ± 2 | 174 | 24/29 | 700 | 1 |
| 24 782 57 03 | 150 | 172 | 215 ± 2 | 293 | 24/29 | 2 400 | 1 |
| 24 782 61 08 | 200 | 224 | 270 ± 2 | 296 | 24/29 | 5 800 | 1 |
| 24 782 66 05 | 250 | 274 | 320 ± 2 | 344 | 24/29 | 10 500 | 1 |
| 24 782 69 05 | 300 | 332 | 380 ± 2 | 420 | 24/29 | 18 500 | 1 |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
