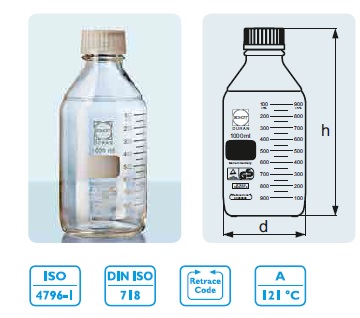

with DIN thread, GL 45
Code | LGW1127075 |
- With easy-to-read scale and large labelling field for easy marking, in fired-on, highly durable white ceramic.
- Complete with pouring ring and cap from TpCh260 (similar to PFA).
- The premium cap with its PTFE coated silicone seal is colourless and temperature resistant from –196°C to +200°C.
- Together with proven DURAN® properties, TÜV tested thermal shock resistance of 160 K, confirmed by GS-marking (TÜV ID: 0000020715).
- USP/FDA conformity for the entire system comprised of bottle, screw cap and pouring ring.
- Accurate scale: ±5%.
- Additional graduations as well as additional opposing scale simplify reading off.
- Typical applications: Due to its properties, ideal for applications in the pharmaceutical industry, handling of aggressive media, sterilisation processes (hot air and dry
Cat.No. | Capacity (mL) | DIN Thread (GL) | d (OD) (mm) | h (mm) | Pack Unit |
with premium screw cap and pouring ring | |||||
11 270 75 | 100 | 45 | 56 | 105 | 10 |
11 270 76 | 250 | 45 | 70 | 143 | 10 |
11 270 77 | 500 | 45 | 86 | 181 | 10 |
11 270 78 | 1 000 | 45 | 101 | 230 | 10 |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
