with flat flange, no outlet, suitable for all types of lids
| Code | LGW247704604 |

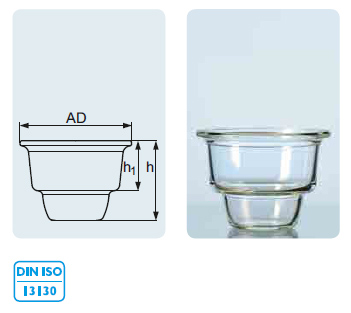

| Cat. No. | DN | ID Flange (mm) | Outer diameter (AD) Flange (mm) | h (mm) | h1 (mm) | Volume approx. (mL) | Pack Unit |
| 24 770 46 04 | 100 | 119 | 153 ± 2 | 112 | 58 | 700 | 1 |
| 24 770 57 03 | 150 | 172 | 215 ± 2 | 154 | 81 | 2 400 | 1 |
| 24 770 61 08 | 200 | 224 | 270 ± 2 | 202 | 115 | 5 800 | 1 |
| 24 770 66 05 | 250 | 274 | 320 ± 2 | 235 | 120 | 10 500 | 1 |
| 24 770 69 05 | 300 | 332 | 332 ± 2 | 283 | 150 | 18 500 | 1 |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
