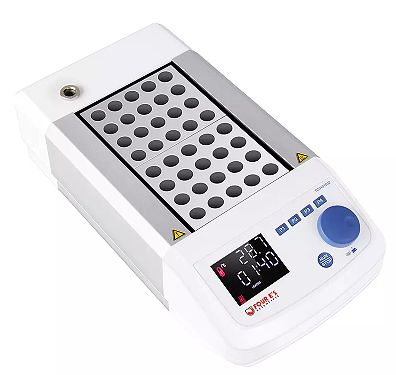

FOUR E’s Dry Bath Incubator is designed for outstanding temperature control and accuracy.
Typical Applications:
- Widely used in sample preparation, enzyme preservation, enzyme-substrate reactions, DNA amplification, electrophoresis gel degeneration and serum coagulation.
Features:
- LED display for easy reading
- 3D digital wheel adjustment of time and temperature
- Adjustable temperature is up to 150°C
- High temperature stability is up to ±0.2°C
- Machined aluminium heating unit allows for highly precise control of temperature
- Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
- Adjustable timing range of 1min to 99h59min
- Fixed safety circuit
- Error code display
- Various applications with different blocks
- Automatic calibration with external PT1000 temperature sensor
- Digital wheel enables accurate setting of temperature and heating time.
- The equipment comes with a built-in temperature sensor and also an additional external temperature sensor PT1000.
- When PT1000 is connected, the internal temperature sensor will disconnect automatically, enabling the temperature control and display to rely on the external temperature sensor.
- Interchangeable aluminium alloy sample blocks provide versatility in applications.
| Model | TC0401002 |
| Number of blocks | 2 |
| Heat output [W] | 250 |
| Heating temperature range [°C] | room temp.+5°C-150°C |
| Temperature display | LED |
| Adjustment and display resolution [K] | 0.1 |
| Connection for ext. temperature sensor | DIN 12 878 |
| PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
| Temperature stability within the blocks < 60°C * [±°C] | ±0.5 |
| Temperature stability within the blocks > 60°C * [±°C] | ±1 |
| Temperature Uniformity < 60°C * [K] | 0.5 |
| Temperature Uniformity > 60°C * [K] | 0.5 |
| Heating rate / Heat up time with
external sensor * [K/min] |
4.5 |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions [mm] | 96×152 |
| Fixed safety circuit [°C] | 180 |
| Timer | √ |
| Time setting range | 1min – 99h59min |
| Dimensions (W x H x D) [mm] | 152 x 86 x 300 |
| Weight [kg] | 2.5 |
| Permissible ambient temperature [°C] | 5 – 40 |
| Permissible relative humidity | 80% |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage [V] | 200-240/115 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 250 |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this website.
