Tension/Compression models from 1KN (100kg) to 20KN (2,000kg)
| Code | LES-EFG10S-XX |
- Compression only models from 1KN (100kg) to 200KN (20,000kg)
- Separate S-type or Ring load cell sensor
- Ergonomic, durable, heavy-duty metal construction
- Accuracy ±0.2% FS
- Selectable units: N, Kgf or lbf
- Modes: Track, Peak, auto Peak, First Peak
- Sampling rate: 2000 Hz (display update 10 times/sec)
- Graphic dot matrix LCD with back light
- USB output (free software download)

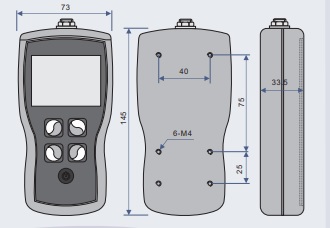

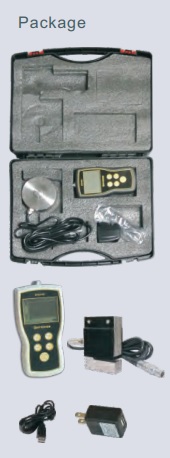

- c/w carry case, sensor on 3m cable, USB cable and charger
- ** Optional eye bolts **
|
Models |
Load cell |
Capacity / Resolution |
Push & Pull |
||||
|
N |
Kgf | Ibf | kN |
Tf |
|||
| LES-EFG10S-1K-S | ESP-F1K-S | 1000/0.1 | 100/0.01 | 220/.05 |
– |
– |
|
| LES-EFG10S-2K-S | ESP-F2K-S | 2000/0.5 | 200/0.05 | 450/0.1 | |||
| LES-EFG10S-5K-S | ESP-F5K-S | 5000/1 | 500/0.1 | 1100/0.1 | |||
| LES-EFG10S-10K-S | ESP-F10K-S | 10000/1 | 1000/0.1 | 2250/0.5 | 10/0.001 | ||
| LES-EFG10S-20K-S | ESP-F20K-S | 2000/0.5 | 4500/1 | 20/0.005 | |||
| LES-EFG10S-10K-R | ESP-F10K-R | 10000/1 | 1000/0.1 | 2250/0.5 | 10/0.001 |
Push Only |
|
| LES-EFG10S-20K-R | ESP-F20K-R |
– – |
2000/0.5 | 4500/1 | 20/0.005 | ||
| LES-EFG10S-50K-R | ESP-F50K-R | 5000/1 | 1.1K/0.005K | 50/0.01 | 5/0.001 | ||
| LES-EFG10S-100K-R | ESP-F100K-R |
– |
2.2K/0.005K | 100/0.01 | 10/0.001 | ||
| LES-EFG10S-200K-R | ESP-F200K-R | 4.4K/0.01K | 200/0.005 | 20/0.005 | |||
Optional Extra’s:
- Mini Printer
- Float flat push tip
- Extension Adapter
- Pull clamp
- Rs 232 Cable
- Desktop stand
|
Models |
Load cell |
Capacity / Resolution (push only) |
||||
|
N |
Kgf | Ibf | kN |
tf |
||
| LES-EFG10S-1K-M | ESP-F1K-M | 1000/0.1 | 100/0.01 | 220/.05 |
– |
|
| LES-EFG10S-5K-M | ESP-F5K-M | 5000/1 | 500/0.1 | 1100/0.1 | ||
| LES-EFG10S-10K-M | ESP-F10K-S | 10000/1 | 1000/0.1 | 2250/0.5 | 10/0.001 | |
| LES-EFG10S-50K-M | ESP-F50K-M |
– |
5000/1 | 1.1K/0.005K | 50/0.01 | 5/0.001 |
| LES-EFG10S-100K-M | ESP-F100K-M |
– |
2.2K/0.005K | 100/0.01 | 10/0.001 | |
LES-ESP-Fxx-S Load cell (S-beam):
| Specifications: | Technique: |
| Rated Output (mV / V) | 2.0±5% |
| Zero Balance (F.S.) | 2.0% |
| Non-linearity (F.S.) | 0.03% |
| Hysteresis (F.S.) | 0.03% |
| Repeatability (F.S.) | 0.03% |
| Creep [30min] (F.S.) | 0.03% |
| Temp. Effect (F.S./10ºC) | 0.025% |
| Safe Overload (F.S.) | 150% |
| Input Impedance(Ω) | 385±30 |
| Output Impedance(Ω) | 350±3 |
|
Model |
Capacity |
Order No. |
Dimensions |
|||
|
W |
H | B |
M |
|||
| ESP-F1K-S | 1kN | EON 410s0001 | 51 | 76.2 | 19 | M12 |
| ESP-F2K-S | 2kN | EON 410s0002 | ||||
| ESP-F5K-S | 5kN | EON 410s0005 | ||||
| ESP-F10K-S | 10kN | EON 410s00010 |
25.4 |
|||
| ESP-F20K-S | 20kN | EON 410s00020 |
76.2 |
108 |
M18*1.5 |
|
LES-ESP-Fxx-R Load cell (Ring type):
| Specifications: | Technique: |
| Rated Output (mV / V) | 2.0±1% |
| Zero Balance (F.S.) | 2% |
| Non-linearity (F.S.) | 0.05% |
| Hysteresis (F.S.) | 0.05% |
| Repeatability (F.S.) | 0.05% |
| Creep [30min] (F.S.) | 0.05% |
| Temp. Effect (F.S./10ºC) | 0.03% |
| Safe Overload (F.S.) | 150% |
| Input Impedance(Ω) | 385±10 |
| Output Impedance(Ω) | 350±3 |
|
Model |
Capacity |
Order No. |
Dimensions |
|||||
|
D |
d | L | H | D₁ |
M |
|||
| ESP-F10K-R | 10kN | EON 410r0010 |
82 |
22 | 32
|
44 | 68 |
4-M8 |
| ESP-F20K-R | 20kN | EON 410r0020 | ||||||
| ESP-F50K-R | 50kN | EON 410r0050 | ||||||
| ESP-F100K-R | 100kN | EON 410r00100 | ||||||
| ESP-F200K-R | 200kN | EON 410r00200 | 126 | 35 | 40 | 54 | 101 | 4-M10 |
LES-ESP-Fxx-M Load cell (Mini Ring):
| Specifications: | Technique: |
| Rated Output (mV / V) | 1.5±10% |
| Zero Balance (F.S.) | ±2% |
| Non-linearity (F.S.) | 0.5% |
| Hysteresis (F.S.) | 0.5% |
| Repeatability (F.S.) | 0.5% |
| Creep [30min] (F.S.) | 0.1% |
| Temp. Effect (F.S./10ºC) | 0.05% |
| Safe Overload (F.S.) | 120% |
| Input Impedance(Ω) | 350±30 |
| Output Impedance(Ω) | 350±5 |
|
Model |
Capacity |
Order No. |
Dimensions |
|||||
|
D |
d | L | H | D₁ |
M |
|||
| ESP-F1K-M | 1kN | EON 410m0001 | ||||||
| ESP-F5K-M | 5kN | EON 410m0005 | ||||||
| ESP-F10K-M | 10kN | EON 410m00010 | ||||||
| ESP-F50K-M | 50kN | EON 410m00050 |
38 |
11 | 14 | 16 | 30 |
3-M6 |
| ESP-F100K-M | 100kN | EON 410m000100 |
51 |
15 | 22 | 25 | 41 |
4-M10 |
