demonstration of complex machine elements and demonstration of their principle of operation

Description:

• Using cutaway models, it is possible to clearly demonstrate the operational principles of complex machine elements such as a multi-disc clutch, various gearboxes or a pedestal bearing.
• The GL 300.01to GL 300.12 cutaway models form a meaningful addition to the assembly kits, models and model kits for the engineering drawing discipline.
• In order to be able to use the cutaway models in engineering teaching, each model comes with a standards-compliant and practical drawing and a technical description.
• Problems of engineering drawing, fasteners and machine parts or production and testing technology can be studied in a clear and practical manner using the cutaway models.
• The cutaway models represent original components in which the active parts are clearly visible to the user while fully maintaining their mechanical functionality.
• Each of the cutaway models is securely mounted on a base plate, which also has handles to allow them to be carried.
• They are powered by hand.

Technical Details:

Specification:

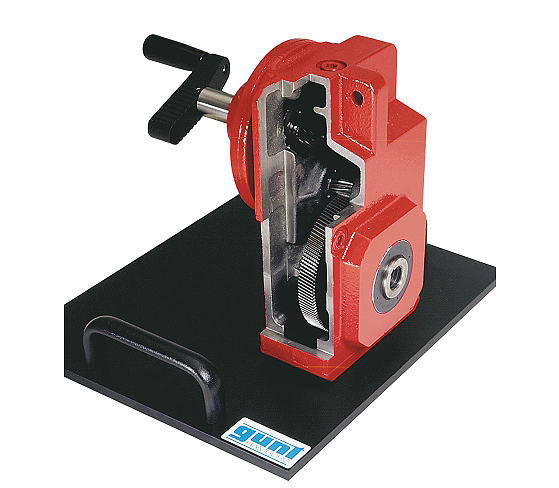

• hand-operated cutaway model for demonstrating the function of a two-stage spur gear
• industrial original component, fully functional cutaway model
• solid metal base plate, handles

Technical Data:

• Spur gear:
  • drive pinion (helical): z₁=22
  • Intermediate gear (helical): z₂=51
  • pinion shaft (helical): z₃=15
  • output gear (helical): z₄=76
  • total transmission: 11,74:1
  • permitted speed: 2800min^-1
  • permitted torque: 296Nm

Dimensions and Weight:

• L x W x H: 350x300x280mm
• Weight: approx. 20kg

Learning Objectives/Experiments:

• principle of operation and design of two-stage spur gear

Scope of Delivery:

• 1 cutaway model
• 1 description
• 1 sectional view

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
