Cutaway model: mitre gear (GL 300.02)

Cutaway model: mitre gear (GL 300.02)

demonstration of complex machine elements and demonstration of their principle of operation

Code GL300.02

Description:

  • Using cutaway models, it is possible to clearly demonstrate the operational principles of complex machine elements such as a multi-disc clutch, various gearboxes or a pedestal bearing.
  • The GL 300.01to GL 300.12 cutaway models form a meaningful addition to the assembly kits, models and model kits for the engineering drawing discipline.
  • In order to be able to use the cutaway models in engineering teaching, each model comes with a standards-compliant and practical drawing and a technical description.
  • Problems of engineering drawing, fasteners and machine parts or production and testing technology can be studied in a clear and practical manner using the cutaway models.
  • The cutaway models represent original components in which the active parts are clearly visible to the user while fully maintaining their mechanical functionality.
  • Each of the cutaway models is securely mounted on a base plate, which also has handles to allow them to be carried.
  • They are powered by hand.

Technical Details:

Specification:

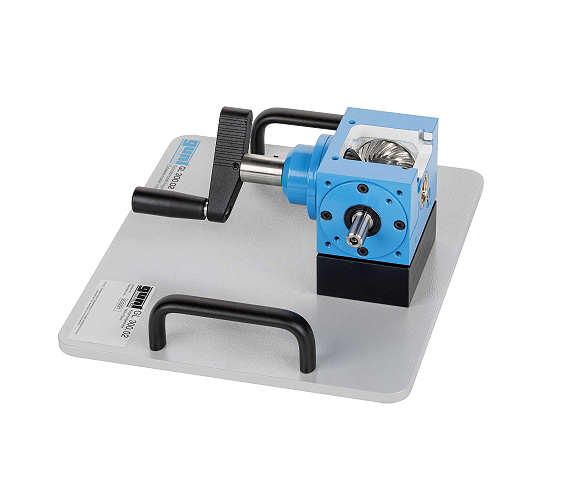

  • hand-operated cutaway model for demonstrating the function of a mitre gear
  • industrial original component, fully functional cutaway model
  • solid metal base plate, handles

Technical Data:

  • Transmission ratio
  • Drive:
    • number of teeth: z=23
    • real pitch module: m=2,5mm
  • output:
    • number of teeth: z=23
    • real pitch module: m=2,5mm
  • transmission ratio: i=1
  • output torque:
    • 50Nm at 1000min-1

Dimensions and Weight:

  • L x W x H: 350x300x120mm
  • Weight: approx. 3kg

Learning Objectives/Experiments:

  • principle of operation and design of a mitre gear

Scope of Delivery:

  • 1 cutaway model
  • 1 description
  • 1 sectional view

Accessories:

  • Optional:
  • MT 121 Assembly exercise: mitre gear

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
