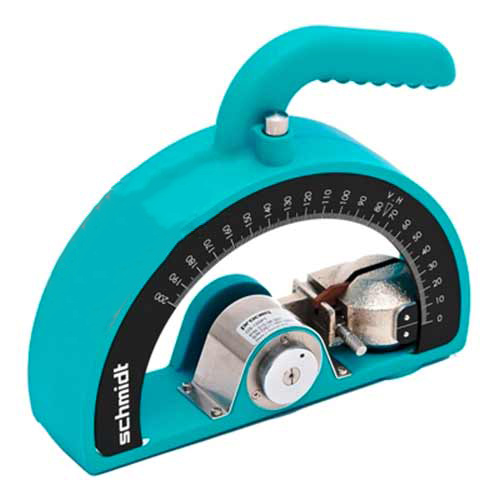

CONCRETE TEST HAMMER – SCHMIDT OS-120PT (EN12504-2, ASTM C 805) (LCN651)

CONCRETE TEST HAMMER – SCHMIDT OS-120PT (EN12504-2, ASTM C 805) (LCN651)

SKU LCN651 Category

to EN12504-2, ASTM C 805

Code LCN651
Other Standards EN12504-2, ASTM C 805
Weight (kg) 3.45
Tariff 902480 90
  • The OS-120 Pendulum Hammers are designed to test on softer material such as light weight concrete, gypsum boards, fresh concrete and the mortar of joints in brickwork.
  • Their unique design allows easy to handle measurements on vertical and horizontal surfaces.
  • Schmidt OS-120 is the only rebound hammer worldwide working with the pendulum system, thus it must not be loaded on the test surface.
  • The larger plunger surface on the Schmidt OS-120PT allows tests on soft concrete starting with a compressive strength of 1 MPa.

Features:

  • Pendulum type rebound system
  • Large, half circular scale with high resolution
Specification
Measuring range 1 N/mm2 (145 psi) – 5 N/mm2 (725 psi)
Impact energy 0.833 Nm (0.614 ft lbf)
Hammer mass 720 g (1.59 lb)
Hammer head diameter 40 mm (1.57″)
Weight 3.45 kg (7.60 lb)
Dimensions of housing 230 x 60 x 200 mm (9.06″ x 2.36″ x 7.87″)
Operating temperature -10 – 50°C (14 to 122°F)
Storage temperature -10 – 70°C (14 to 158°F)
