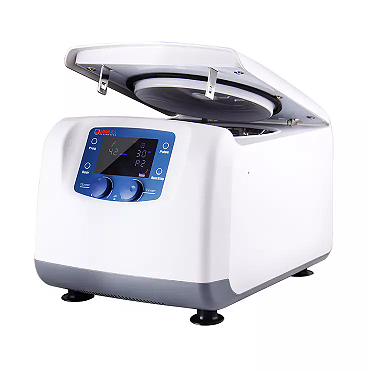

Designed for performance, reliability and quiet operation, FOUR E’s Clinical Centrifuge with its large LED display and compact footprint stands out in your Lab.
Typical Applications:
- Widely used in the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories
- PRP preparation
Features:
- Micro-computer control gives high speed control accuracy and excellent centrifugation performance
- Brushless DC motor is maintenance-free and provides rapid acceleration and deceleration
- Rotor is made of tough, high-strength flame retardant material and is impact resistant, wear resistant and chemical resistant.
- Large LED display can show the running process and the error warning
- Independent digital wheels adjust the speed and time
- Two operation modes are available; timing operation of 30s-99m and continuous operation
- Run parameters can be adjusted after the set speed is reached
- The door interlock design makes the door open automatically after a beep when the run is completed, which can prevent samples overheating
- Performs self-diagnostics every time the device is turned on, and also displays the accumulated running time together with parameters of the last run.
- Excellent dynamic balance ensures quiet and stable running
- The short spin function is used for quick spins by pressing and holding PULSE key
- Micro-computer control gives high speed control, accuracy and excellent centrifugation.
- The Speed/RCF switch lets you set either RPM or RCF. It has ‘Timed’ and ‘Continuous’ operation modes, and also a ‘PULSE’ function which allows for quick spins.
- The twelve-position rotor accommodates 5mL, 7mL or 10mL culture or blood collection tubes and up to eight 15mL tubes.
- Other salient features include a brush-less DC motor, self-diagnostics function when turned on, and Air flow design to prevent sample heating.
| Model | CF0202003 |
| Speed range [rpm] | 300-4500, increment: 100 |
| Max. RCF [x g] | 2940 |
| Speed accuracy [rpm] | ±20 |
| Rotor capacity | 10mL/7mL/5mLx12; 15mLx6 |
| Time range | Timed operation: 30s-99min; Continuous operation |
| Motor | Brushless DC motor |
| Safety devices | Door interlock; Over-speed detection; Over-temperature detection; Automatic internal diagnosis |
| Power | Single-phase, AC110V-240V, 50Hz/60Hz, 2.5A |
| Acceleration/Braking time [Sec] | 20s↑ 15s↓ |
| Dimensions [mm] | 460 x 310 x 270 |
| Additional features | Speed/RCF switch; Short-time run function; sound-alert function |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this website.
