Description:

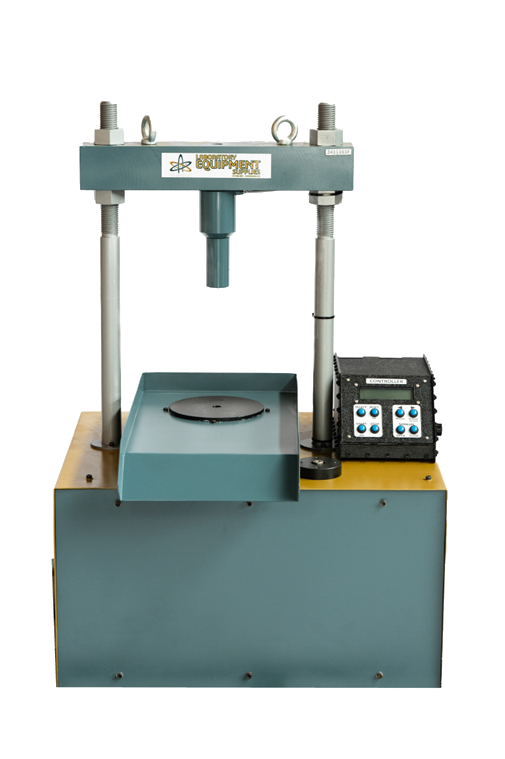

The CBR Press Apparatus is an advanced testing machine used to perform California Bearing Ratio (CBR) tests, which assess the strength and load-bearing capacity of soil and base materials in road construction. Designed to support both TMH & SANS testing methods, this fully automatic system ensures accurate and efficient analysis. Built with a robust two-column frame and adjustable upper crossbeam, the apparatus guarantees stability and precision during operation. It also supports UCS, ITT, and Marshall tests, making it a versatile solution for geotechnical and civil engineering applications.
Features:
- Multi-Test Capability: Performs CBR, UCS, ITT, and Marshall tests
- Precision Components: Equipped with standard penetration piston, and 200kn loadcell for accurate load and depth measurements
- Automated Operation: Fully automatic version ensures consistent loading rate and test repeatability
- Versatile Applications: Suitable for laboratory use across various soil types and asphalt
Technical Specifications:
| Frame | Dual-column with adjustable crossbeam |
| Load Application | Motorized with 200kn loadcell |
| Compatible Tests | CBR, UCS, ITT, Marshall |
Supplied with:
- Penetration Piston
- Swivel Head
- Instruction Manual
- Verification Certificate
Optional Items:
- Data Acquisition Software: Enables digital data logging and automated report generation
- SANAS Calibration Certificate: Certification available upon request
- Onsite Calibration: Optional service to ensure compliance and accuracy after installation
- CBR Mould, Collar, and Base Plate
- CBR Filter Paper
- CBR Gauze
- CBR Extruder
- Surcharge Weights
- Table for CBR press
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website
