Compression Testing Frames
| Code | UTC-4601 |
| Standards | ASTM C39; AASHTO T22 |
Product Code:
| UTC-4601 | 6600 kN (135000 lbf) Compression Testing Frame with Ø105mm (4,13”) Upper Bearing Blocks for Cylinders, ASTM & AASHTO |

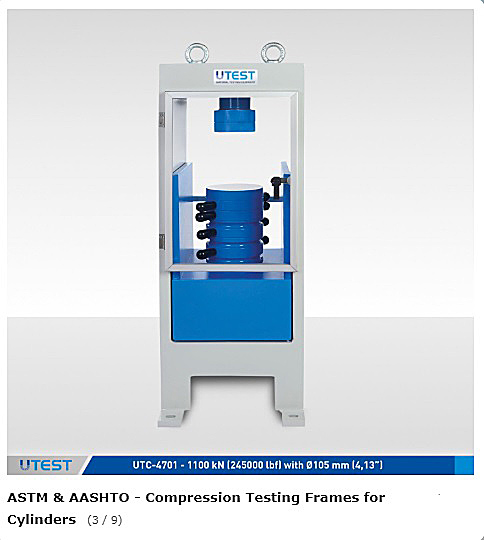

| UTC-4701 | 1100 kN (245000 lbf) Compression Testing Frame with ØØ105mm (4,13”) Upper Bearing Blocks for Cylinders ASTM & AASHTO |
| UTC-4602 | 600 kN (135000 lbf) Compression Testing Frame with Ø165mm (6,5”) Bearing Blocks for Cylinders ASTM & AASHTO |
| UTC-4702 | 1100 kN (245000 lbf) Compression Testing Frame with Ø165mm (6,5”) Upper Bearing Blocks for Cylinders ASTM & AASHTO |
| UTC-4712 | 1500 kN (335000 lbf) Compression Testing Frame with Ø165mm (6,5”) Bearing Blocks for Cylinders ASTM & AASHTO |
| UTC-4722 | 2000 kN (450000 lbf) Compression Testing Frame with Ø165mm (6,5”) Bearing Blocks for Cylinders ASTM & AASHTO |
| UTC-4732 | 3000 kN (670000 lbf) Compression Testing Frame with Ø165mm (6,5”) Bearing Blocks for Cylinders ASTM & AASHTO |
| UTC-4680 | Pedestal for 600 kN (135000 lbf) or 1100 kN (245000 lbf) Compression Testing Frames |
| UTC-4682 | Pedestal for 1500 kN (335000 lbf), 2000 kN (450000 lbf) and 3000 kN (670000 lbf) Compression Testing Frames |
Description:
- ASTM & AASHTO compression testing frames for cylinders consist of a rigid welded steel walls, a loading cylinder assembly and lower and upper (spherically-seated) bearing platens.
- The frames provide the stability needed for accurate and repeatable test results over the years of operation.
- Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right-hand side of the load frame for easier accessibility, increased productivity and for safer operations.
- All frames have a single acting up stroking ram and also have front and rear protective doors and limit switch for piston stroke for safety.
- The diameter of the pistons is designed to work with the load capacity.
- The lower bearing platens are provided with concentric centring line/s
- UTC-4680 and UTC-4682 Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.
- See the below tables for supplied items with the frames
| ASTM & AASHTO COMPRESSION TESTING FRAMES FOR CYLINDERS | ||||
| Models | UTC-4601 | UTC-4701 | UTC-4602 | UTC-4702 |
| Product
Photo |
 |
 |
 |
 |
| Capacity | 600kN (135000 lbf) | 1100 kN (245000 lbf) | 600kN (135000 lbf) | 1100 kN (245000 lbf) |
| Frame Type | Welded Steel | Welded Steel | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | Ø105 mm (4,13”) | Ø105 mm (4,13”) | Ø 165 mm (6,50″) | Ø 165 mm (6,50″) |
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | Ø 165 mm (6.5”) | Ø 165 mm (6.5”) | Ø 165 mm (6,50″) | Ø 165 mm (6,50″) |
| Surface Hardness of Bearing Blocks | ≥ 55 HRC | ≥ 55 HRC | ≥ 55 HRC | ≥ 55 HRC |
| Flatness Tolerance | 0,02mm / 150mm (0,001”/6”) | 0,02mm / 150mm (0,001”/6”) | 0,02mm / 150mm (0,001”/6”) | 0,02mm / 150mm (0,001”/6”) |
| Piston Diameter | 150 mm (5,9”) | 190 mm (7,48”) | 150 mm (5,9”) | 190 mm (7,48”) |
| Piston Stroke | 50 mm (1,97”) | 50 mm (1,97”) | 50 mm (1,97”) | 50 mm (1,97”) |
| Maximum Vertical Clearance Between Bearing Blocks (E) | 340 mm (13,4”) | 380 mm (15”) | 340 mm (13,4”) | 380 mm (15”) |
| Horizontal Clearance (B) | 230 mm (9,06”) | 270 mm (10,6”) | 230 mm (9,06”) | 270 mm (10,6”) |
| For Cylinder
Specimens Sizes |
Ø100×200 mm
(4”x8”) |
Ø100×200 mm
(4”x8”) |
Ø100×200 mm (4”x8”)
Ø150x300mm(6”x12”) (**) |
Ø100×200 mm (4”x8”)
Ø150x300mm(6”x12”) 160x320mm |
| Dimensions (wxlxh) (Axd*xF) | 270x454x922mm
(10,63”x17,87”x36,3”) |
310x454x1042mm
(12,2”x17,87”x41,02”) |
270x454x922mm
(10,63”x17,87”x36,3”) |
310x454x1042mm
(12,2”x17,87”x41,02”) |
| Weight | 280 kg (620 lbs) | 378 kg (835 lbs) | 291 kg (640 lbs) | 389 kg (860 lbs) |
| Pedestal (Optional) | UTC-4680 | UTC-4680 | UTC-4680 | UTC-4680 |
- (d*) depth
- (**) Limited by capacity of the frame
- The frames are supplied complete with:
- UTC-4601 and UTC-4602: Ø100mm (3,93”)50mm (1,97”), 30mm (1,2”) height x Ø165mm (Ø 6,5”) distance pieces
- UTC-4701, UTC-4702 and UTC-4712: Ø100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) mm height x Ø165 mm (Ø 6,5”) distance pieces
- Removable transparent front and rear safety doors
| ASTM & AASHTO COMPRESSION TESTING FRAMES FOR CYLINDERS | |||
| Models | UTC-4712 | UTC-4722 | UTC-4732 |
| Product
Photo |
 |
 |
 |
| Capacity | 1500 kN (335000 lbf) | 2000 kN (450000 lbf) | 3000 kN (670000 lbf) |
| Frame Type | Welded Steel | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | Ø 165 mm (6.5”) | Ø 165 mm (6.5”) | Ø 165 mm (6.5”) |
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | Ø 165 mm (6.5”) | Ø 165 mm (6.5”) | Ø 165 mm (6.5”) |
| Surface Hardness of Bearing Blocks | ≥ 55 HRC | ≥ 55 HRC | ≥ 55 HRC |
| Flatness Tolerance | 0,02mm/150mm (0,001”/6”) | 0,02mm/150mm (0,001”/6”) | 0,02mm/150mm (0,001”/6”) |
| Piston Diameter | 230 mm (9,06”) | 250 mm (9,84”) | 310 mm (12,2”) |
| Piston Stroke | 50 mm (1,97”) | 50 mm (1,97”) | 50 mm (1,97”) |
| Maximum Vertical Clearance
Between Bearing Blocks (E) |
380 mm (15”) | 380 mm (15”) | 380 mm (15”) |
| Horizontal Clearance (B) | 320 mm (12,6”) | 360 mm (14,17”) | 415 mm (16,34”) |
| For Cylinder
Specimens Sizes |
Ø100×200 mm (4”x8”)
Ø150×300 mm (6”x12”) Ø160x320mm |
Ø100×200 mm (4”x8”)
Ø150×300 mm (6”x12”) Ø160x320mm |
Ø100×200 mm (4”x8”)
Ø150×300 mm (6”x12”) Ø160x320mm |
| Dimensions (wxlxh) (Axd*xF) | 380x451x1104mm
(14,96”x17,76”x43,86”) |
420x453x1144 mm
(16,54”x17,83”x45,04”) |
475x497x1204mm
(18,7”x19,57”x47,4”) |
| Weight | 528 kg (1165 lbs) | 615 kg (1355 lbs) | 837 kg (1845 lbs) |
| Pedestal (Optional) | UTC-4682 | UTC-4682 | UTC-4682 |
| (d*) depth
(**) Limited by capacity of the frame The frames are supplied complete with; • 90 mm, 50 mm, 2 pcs. 30 mm height x Ø165 mm (6.5”) distance pieces • UTC-4701, UTC-4702 and UTC-4712: Ø100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) mm height x Ø165 mm (Ø 6,5”) distance pieces • Removable transparent front and rear safety doors |
|||
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
