Air Contents (UTC-0650)

SKU: UTC-0650 Category:

Fresh Concrete Testing

CodeUTC-0650
StandardsEN 12350–7; ASTM C231; AASHTO T152; BS 1881:108

Product Codes:

UTC-0650Air Entrainment Meter, 7 Litre, B Type
UTC-0651Air Entrainment Meter, 8 Litre, B Type
UTC-0652Manometer for UTC-0650
UTC-0408Tamping Rod Ø16×600 mm
UTC-0412B.ECompacting Bar (Square Section, 25×25mm), Steel, 380mm

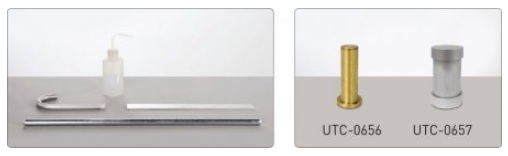

UTC-0656Calibration Vessel for Concrete Air Entrainment Meter (%5), Brass.
UTC-0657Calibration Vessel for Concrete Air Entrainment Meter (%5), Aluminium
UTC-0658Calibration Vessel for UTC-0651, Brass, (%5)
UTC-0659Calibration Vessel for UTC-0650, Calibration Vessel Concrete, Aluminium, (%5), for UTC-0651
UTS-0714Straight Edge 300x30x3 mm

Description:

  • The UTC-0650 and UTC-0651 Air Entrainment Meters are used for determining the air content of fresh concrete.
  • They consist of a flanged 7 or 8 litre capacity cylindrical vessel and cover assembly incorporating a pressure gauge, air pump and valves.
  • They have a quick action clamping system.
  • Direct pressure gauge reading to the nearest 0.1% up to 6%, 0.2% from 6 to 8 and % 0.5 from 8 to 15. It is not affected by changes in barometric pressure.
  • Calibration vessels and compacting bar with square section should be ordered separately.

The Air Entrainment Meter is supplied complete with:

  • Straight Edge
  • Tamping Rod, Ø16×600 mm
  • An inner and an outer (J-Type) calibration pipes
  • Special Carrying Case
Product CodeUTC-0650UTC-0651
Capacity7 litres8 litres
Graduations0.1% up to 6; 0.2% from 6 to %10; 0.5% from 8 to 15%
Dimensions (all supplied items)320x330x630 mm
Weight (approx.) (all supplied items) 19 kg20 kg

Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
