Mechanical and Physical Properties
| Code | UTA-0615-T |
| Standards | EN 1338, 1339, 1340 |
Product Code:
| UTA-0615-T | Abrasion Testing Machine According to Böhme, 220-240 V 50 Hz, 1 ph (60 Hz version is available upon request) |
| UTA-0616 | Abrasive Sand, 50 kg pack for UTA-0615 |
Stan Description:

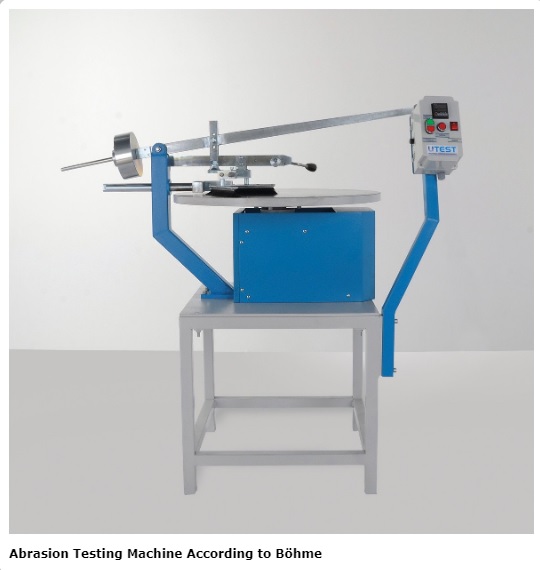

- UTA-0615 the Abrasion Testing Machine according to Böhme is used for determining the abrasion resistance of concrete and natural stone products used for internal or external paving.
- The machine consists of a grinding wheel of approx. 750 mm diameter, a removable testing weight of 30 kg and a clamping device for the sample.
- The machine is equipped with an adjustable counter (30 ± 1 r.p.m.) and an automatic cut-off system which stops the machine after 22 rotations.
- UTA-0616 Abrasive Sand should be ordered separately.
| Dimensions | 1500x6850x1350 mm |
| Weigh (approx.) | 300 kg |
| Power | 750 W |
Due to the continuous development of our products, the goods supplied may vary in detail to that illustrated on this Website.
